ZHHB-05-100 100W HIGHBAY LIGHT LED LIGHT STREET SMD

Name: ZHHB05100 100W HIGHBAY LIGHT LED LIGHT STREET SMD
Brand: DIE-CASTING MAN
Price: 1 USD

Buy cheap ZHHB-05-100 100W HIGHBAY LIGHT LED LIGHT STREET SMD product

Brand Name : DIE-CASTING MAN

Model Number : ZHHB-05-100

Certification : CE,ROHS

Place of Origin : NINGBO,CHINA

MOQ : 10pcs

Price : negotiation

Supply Ability : 10000pcs/month

Delivery Time : 30-40days

Packaging Details : 1pc/foam/ctn

Item : ZHHB-05-100

Material : Die-Casing Aluminium

Wattage : 100W

LED Lifetime : 5000h

Protection Grade : IP66

Pole Size : 60mm

Colour : Black and Grey

Product Size : 285*285*115mm

Contact Now

ZHHB-05 Family Product Spencification

Product Code	ZHHB-05-100	ZHHB-05-150	ZHHB-05-200
Input Wattage	100W	150W	200W
Color Temperature	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	12000-14000lm	18000-19600lm	24000-28000lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70
Temperature of working condition	-40-50℃	-40-50℃	-40-50℃
Humidity of working condition	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66
Light Angle	60°/90°/120°	60°/90°/120°	60°/90°/120°
Net Weight	3.5kgs	4.8kgs	6.5kgs
Gross Weight	4.5kgs	5.8kgs	7.5kgs
Packing Size(mm)	295295165	355355165	415415175
Product Size(mm)	282282115	342342119	403403128

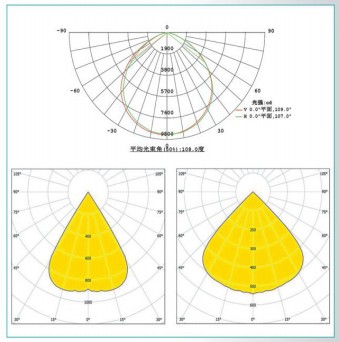

Photometric Data

ZHHB-05-100 100W HIGHBAY LIGHT LED LIGHT STREET SMD

Line Drawing

ZHHB-05-100 100W HIGHBAY LIGHT LED LIGHT STREET SMD

Product Description

*This series is a high-performance street lighting available in three size

*The luminaire is manufactured from high pressure die-casting aluminum

*It shall have a led efficiency up to 120lm/w and will be capable of producing up to 18000luminair lumens at 4000K finished in grey or black as standard.

ZHHB-05-100 100W HIGHBAY LIGHT LED LIGHT STREET SMD
