120lm/W 40W Famous Brand Driver Die Casting Aluminum Waterproof Led Street Light 120lm/W 40W Die Casting Aluminum Waterproof Led Street Light Item NO.: YASL-11 Production Description: - SL-11 series is a high-performance street lighting available in three sizes. The luminaire is manufactured from high pressure die-casting aluminum. - It shall have a led efficiency up to 120 lm/w and will be capable of producing up to 18000 luminaire lumens at 4000K finished in Grey or black as standard. Technical Datas:
| Item NO. | ZHSL-11-30 | ZHSL-11-50 | ZHSL-11-120 |
| | Warm White | Neutral White | Day Light |
| LED Lifetime | 50000h | 50000h | 50000h |
| Color Temperature | 3000K | 4000-4500K | 6000-6500K |
| Luminous Flux Output | 3000LM | 5000LM | 12000LM |
| LED Quantity (with LG Led) | 24pcs | 24pcs | 60pcs |
| Power Factor (with Inventronics Power Supply) | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Input Voltage ((with Inventronics Power Supply) | AC 100-240V | AC 100-240V | AC 100-240V |
| Color Rendering Index (CRI) | Ra>70 | Ra>70 | Ra>70 |
| International Protection Marking (IP code) | IP65 | IP65 | IP65 |
| Impact resistance (glass) (IK code) | IK08 | IK08 | IK08 |
| Frecquency Range (with Inventronics Power Supply) | 50/60Hz | 50/60Hz | 50/60Hz |
| Temperature of Working Condition | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
| Surge protection to preserve the luminaire from voltage spikes (in kV) | 10kV | 10kV | 10kV
|

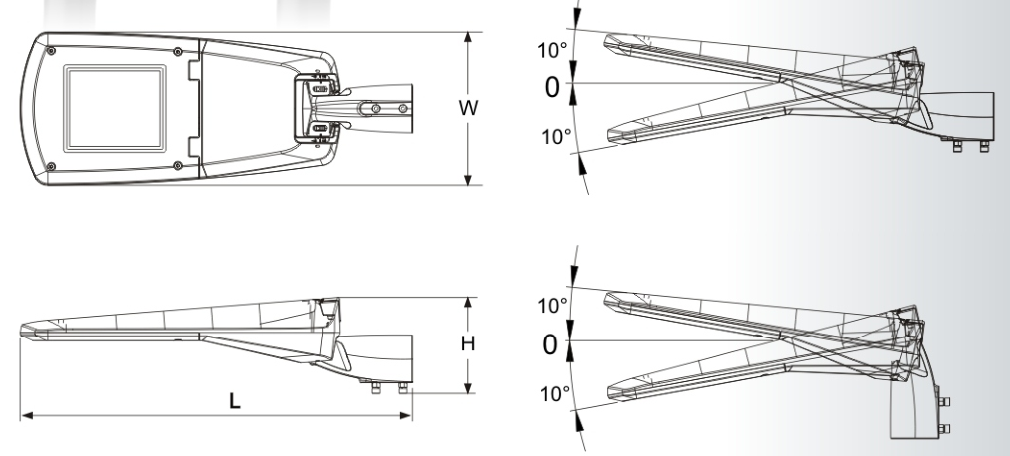

Drawing picture:

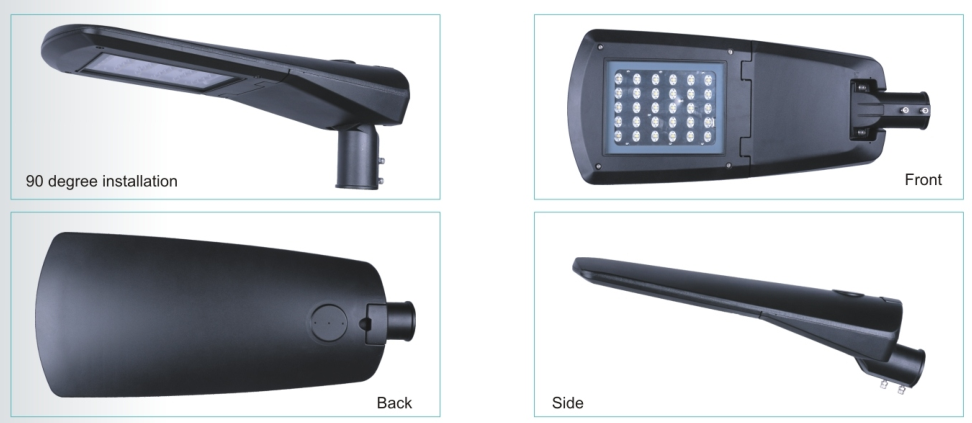

lnstalling Ways: Both Horizontal and Vertical available, and adjustable angle-10°to+10° Material: Die casting aluminum body, Ultra clear tempered glass and PC lens

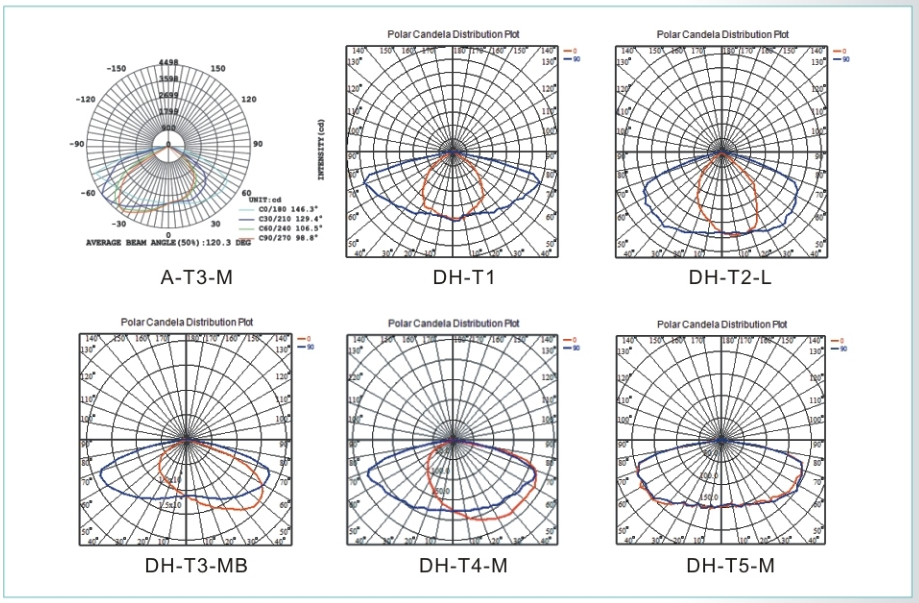

Photometric Data
Company profile
* A professional origin die casting manufacturer of led outdoor light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City
* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* 5-7years guarantee
* ODM and OEM service are both available to customers domestic and overseas.
Why choose us
1. Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.
2. We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.
3. And we also have our own tooling shop and develop department,can help customer develop their own products.
